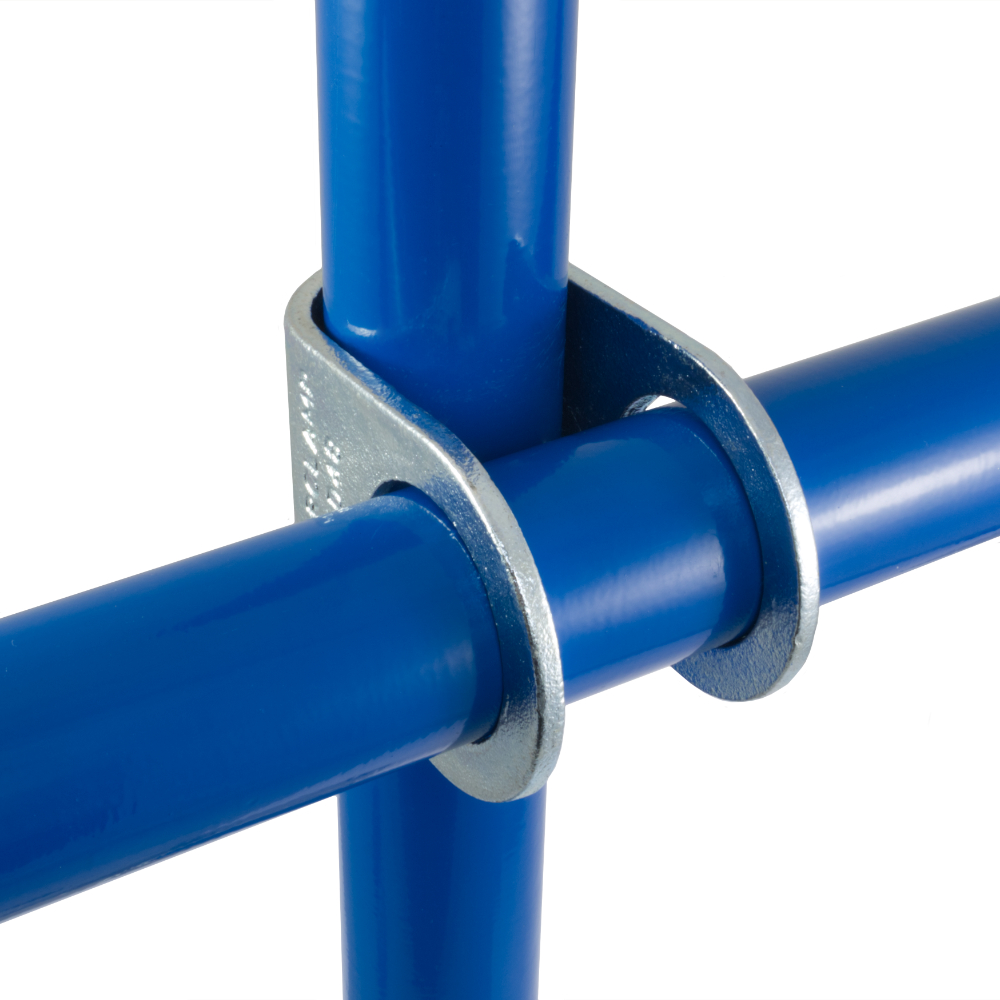

160 - Morsetto Crossover

Designed to form a 90° joint between two tubes. Often used to add to existing structures. Type 137 can often be used as a clamp-on alternative, or type 161 can often be used as an alternative on new structures.

Dati del prodotto e dimensioni

Dimensione a (mm) Peso (kg) Box Qty* Part No
  A27   28   0.17   170   160-A27
  B34   34   0.28   80   160-B34
  C42   43.5   0.43   60   160-C42
  D48   49.5   0.56   48   160-D48
  E60   61   0.84   30   160-E60

* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
