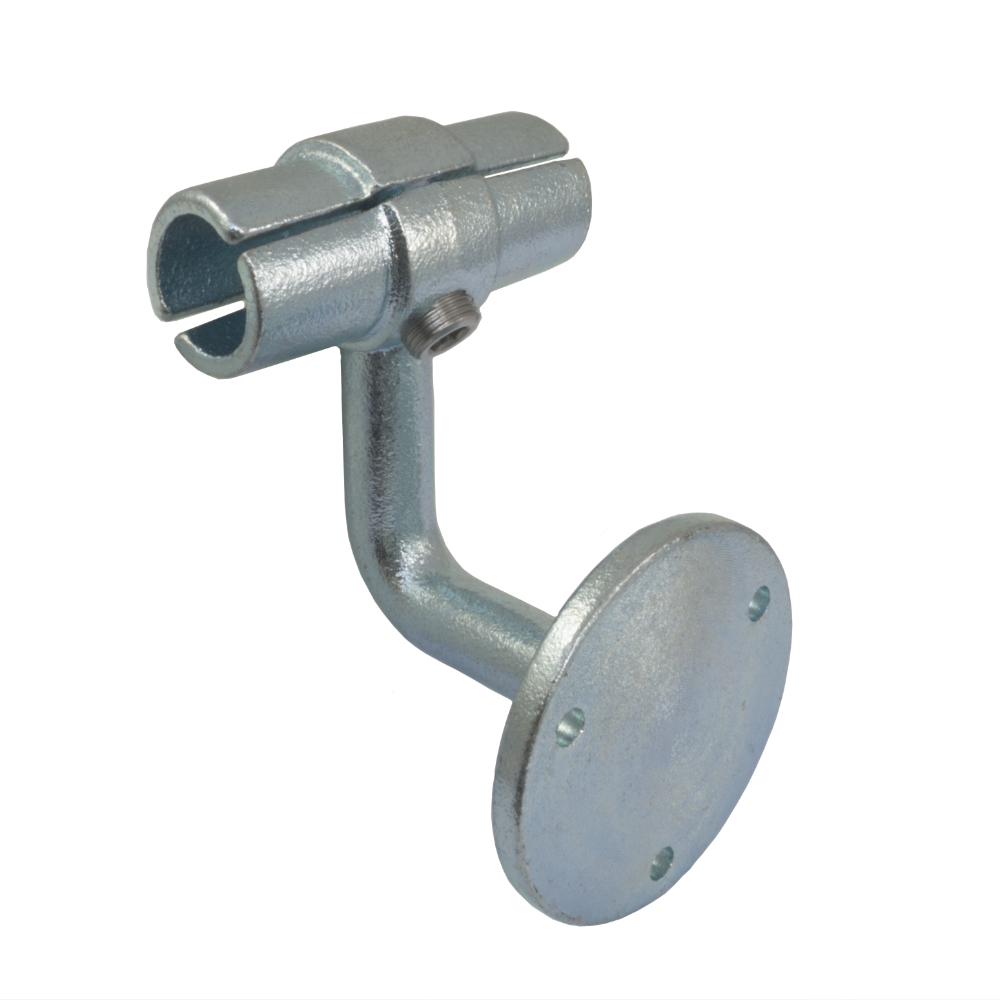

745 - Assistere Supporto a muro espandibile

745 - Assistere Supporto a muro espandibile

To attach the handrail to a wall at any angle.

Lista Giunti Stampare < Precedente Successivo >

Dati del prodotto e dimensioni

Dimensions Image 1 - 745 - Assistere Supporto a muro espandibile
Dimensions Image 2 - 745 - Assistere Supporto a muro espandibile
Dimensione a (mm) b (mm) c (mm) d (mm) e (mm) Peso (Kg) Box Qty* GTIN / EAN No
  C42   80   76.5   32     63   0.98   32   5060511022897
  D48   -   -   -   -   -   1.13   30   5060511022903

* Fittings are sold individually and do not need to be bought in box quantites. Box Quanties may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
