Semplice da specificare Clamp icon Facile da ordinare Clamp icon Rapido da assemblare

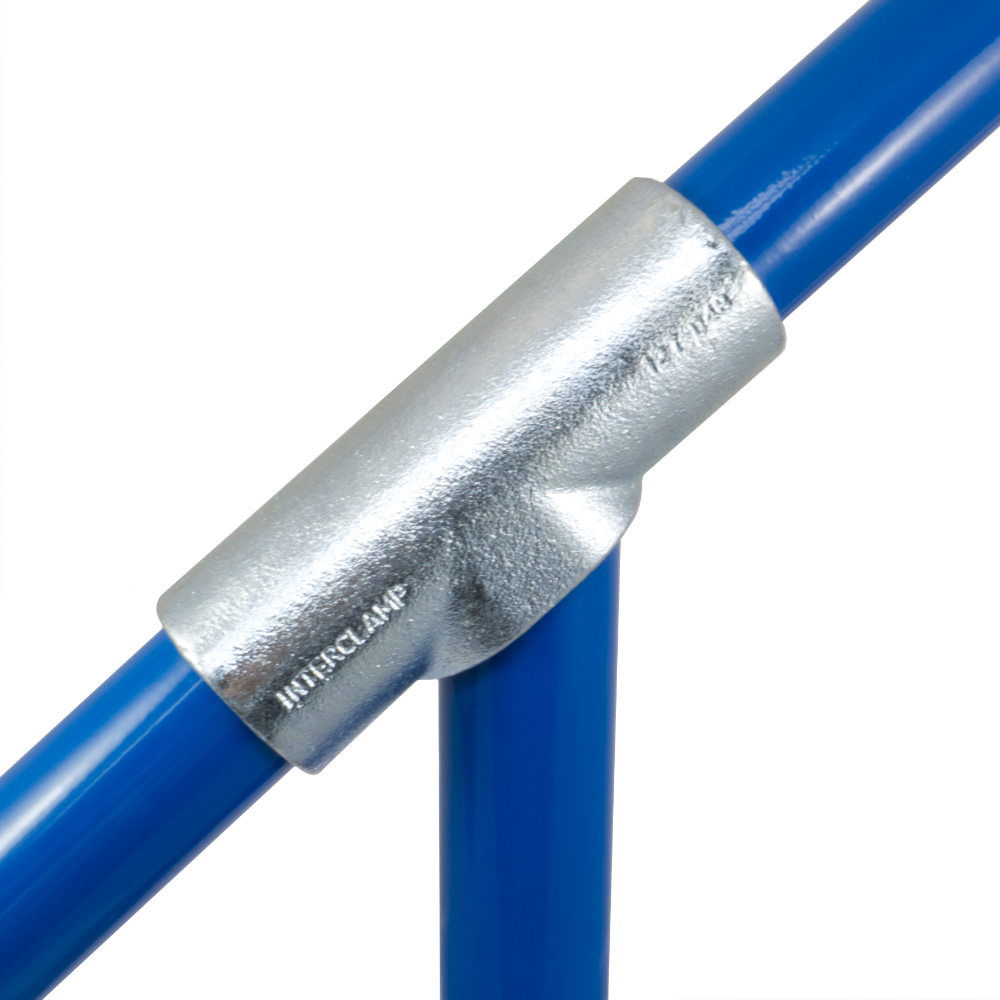

127 - Regolabile Long Tee (30° - 45°)

Adjustable from 30° to 45°, often used on staircase top rails. This Interclamp can be used where the top rail must be joined at the fitting. Where such a joint is not required, type 129 can often be used as an alternative. Often used in conjunction with type 130.

Dati del prodotto e dimensioni

Dimensione b (mm) Peso (kg) Box Qty* Part No
  B34   118   0.59   58   127-B34
  C42   147   0.89   35   127-C42
  D48   165   1.08   23   127-D48

* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
