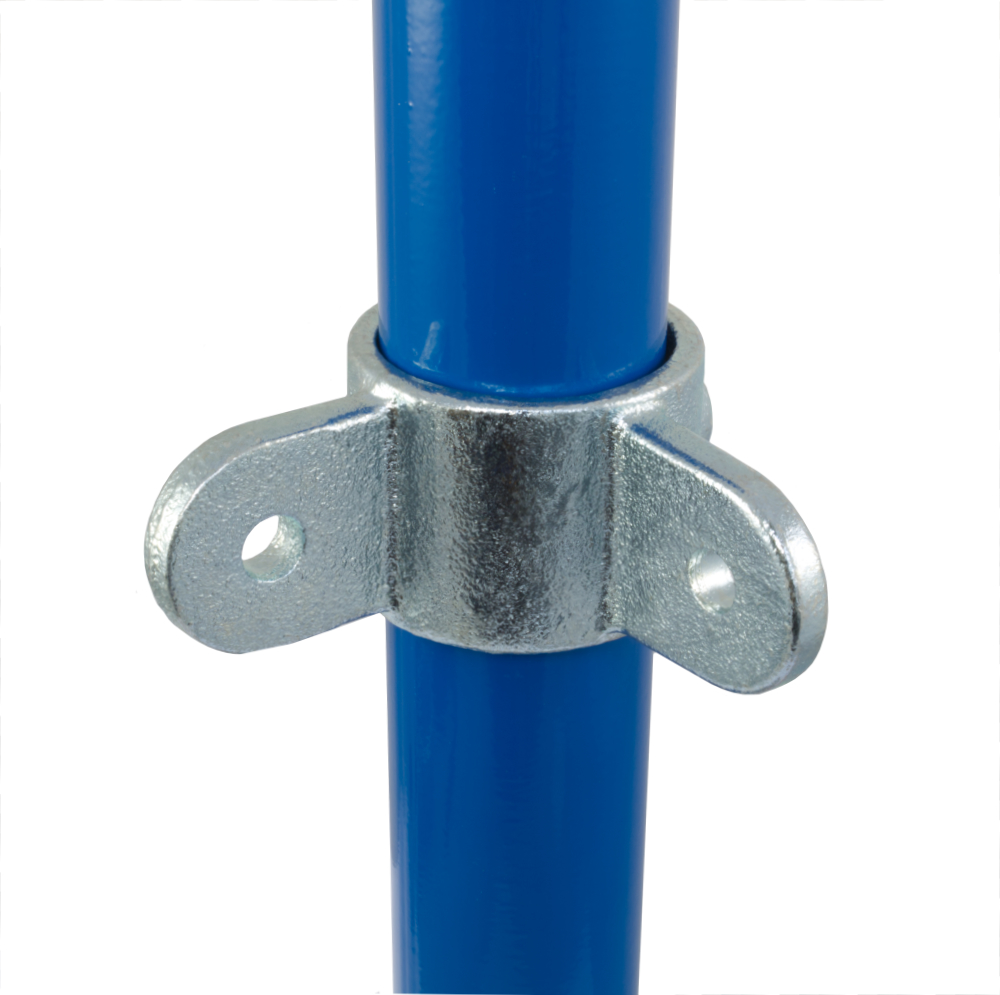

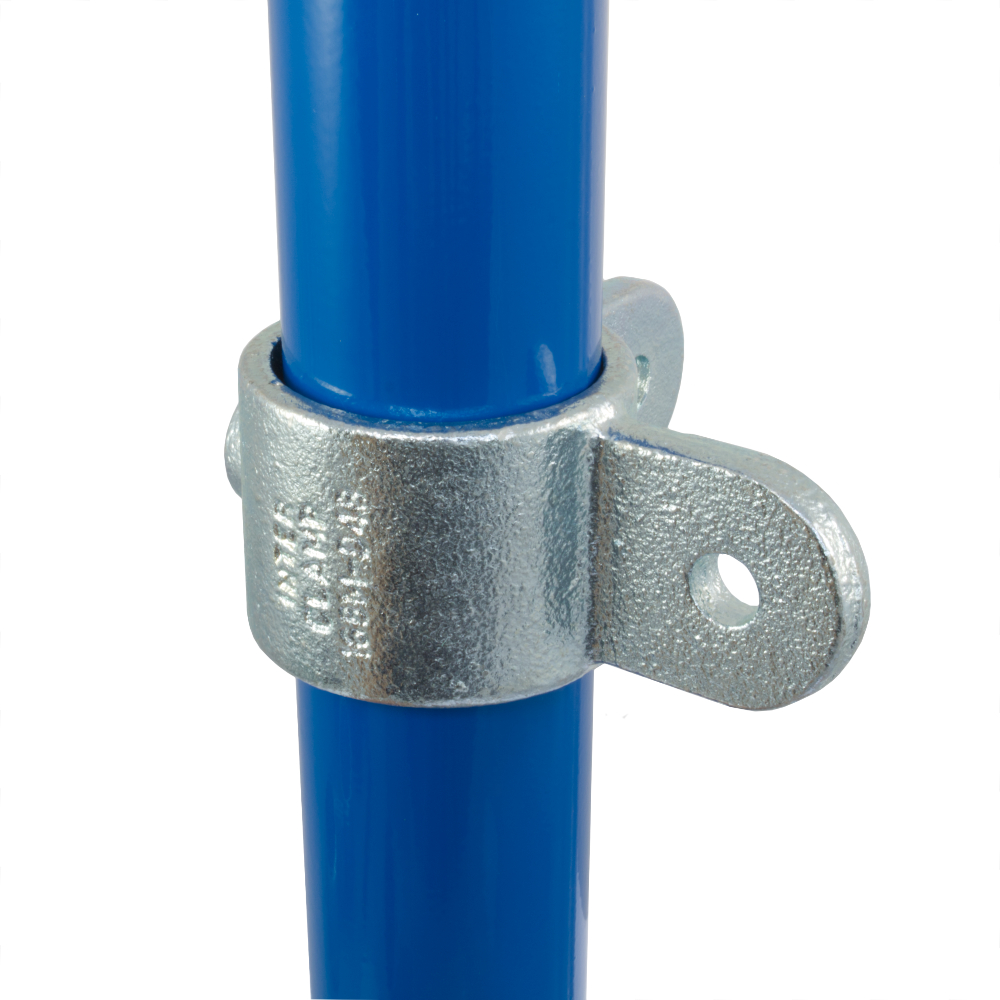

168M - 90° Parte maschio doppia girevole

90° Double lugged fitting. The tube cannot be joined within the fitting.

Warning: To provide sufficient stability, whole structures must not be made from swivel fittings alone.

Product Data & Dimensions

Dimensione a (mm) Peso (kg) Box Qty* Part No
  A27   40   0.30   80   168M-A27
  B34   43.5   0.34   100   168M-B34
  C42   48   0.42   72   168M-C42
  D48   53   0.45   72   168M-D48
  E60   62   0.61   36   168M-E60

* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
